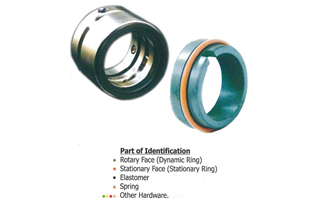

We are a highly esteemed Multi Spring Balance and Unbalance Seal Manufacturer and Exporter. Our Multi Spring Balance and Unbalance Seal Harsh Pumps Make U81 &U86, B81 & B86 Series of Seals are Multiple Spring Units developed for Universal Application & developed for Universal High pressure application. Our Multi Spring Balance and Unbalance Seal are available at market leading prices. As all parts are Interchangeable, one can Convert Series U81 to U86 & B81 to B86 by changing only the Dynamic Ring & the Secondary Seal. This principle is ideal for stock rationalization.

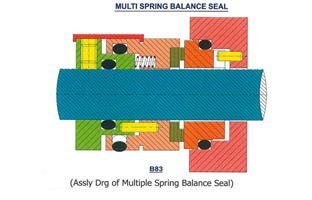

Construction & Working :
Torque Transmission from Retainer Shell to Dynamic Ring is done through Drive lugs. Their Compact Design permits their use in all types of Centrifugal Pumps. All Components are held together by a Snap Ring that helps in easier installation & removal.
Standard Style :
- Face Materials : Dynamic Ring & Stationary Ring , Carbon, Ceramic (99.5%). Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which are Suitable For Fluid.
- Secondary Seal :
U81 & B81 : Viton, EPDM, Silicon, Aflas, EPR, Kalrez, TCV.
U86 & B86 : GFT, PTFE, FEP, Grafoil.
Applications :
- Light Hydrocarbon, Dirty, Media.
- Petrochemicals
- General Chemicals
- Petroleum Refinery.
Operating Limits :
- Shaft Diameter : 10 mm to 100 mm or 0.5" to 4.0"
- Pressure : Unbalabnce 10 Bar (kg/cm2) & Balance upto 35 bar (kg/cm2)
- Temperature : -45oc to 200oc
- Shaft Speed : Upto 6000 RPM According to Shaft Size & Pressure.
Seal Characteristics :
- Inside Mounted
- Single Acting
- Unbalanced
- Independent Of Direction Of Rotation
|
|
